CKW30N65L1
Features
6µs of Short-circuit Withstand Time.
Trench FS Technology Offering.
Very Low VCE(sat).
Positive Temperature Coefficient in VCE(sat).
Very Tight Parameter Distribution.
High Ruggedness, Temperature Stable Behavior.
Maximum Junction Temperature: TJ=175℃.
Applications
HVAC compressor inverter (3kW)
Industrial servo inverter (3kW)
Solar string MPPT (1.5-2kW)
Welding machines
Modular UPS
Other Inverter Application
Topology

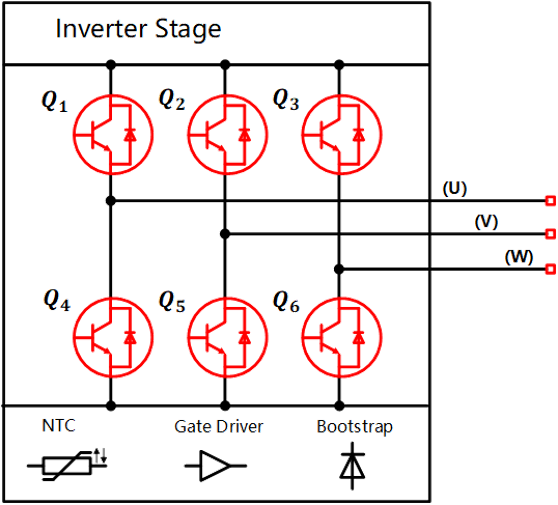

3 phase inverter
Single phase Solar string MPPT

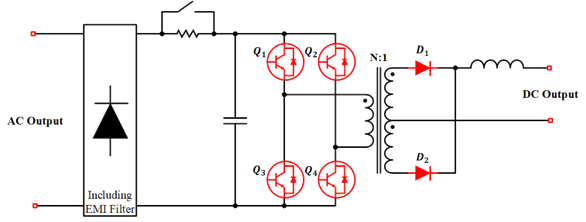

Welding machines
Package
TO-247: 30A
CKW40/50N65F1(Q)
Features
Trench FS Technology offering.
Very low VCE(sat).
Positive temperature coefficient in VCE(sat).
Very tight parameter distribution.
High ruggedness, temperature stable behavior.
Maximum Junction Temperature: TJ=175℃.
Applications
DC charging PFC
HVAC PFC (Q)
Solar string MPPT (5kW)
Solar string inverter (10kW)
Topology

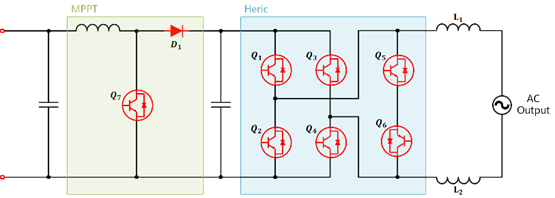

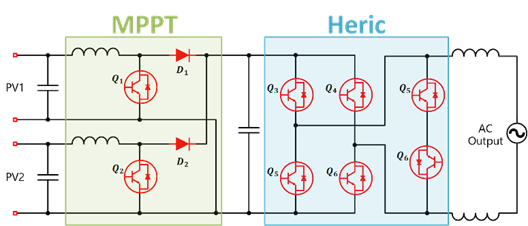

Solar string MPPT+Heric (5kW)

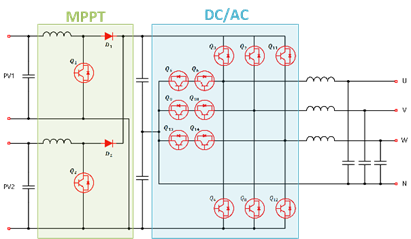

Solar string inverter (10kW)
Package
TO-247: 40A, 50A, 40A(FRD ¼)
TO-263: 40A
CKW40N65HF1H/ CKW50N65HF2H
Features
CoolSiC Hybrid Discrete
Trench FS Technology offering.
Very low VCE(sat).
Positive temperature coefficient in VCE(sat).
Very tight parameter distribution.
High ruggedness, temperature stable behavior.
Maximum Junction Temperature: TJ=175℃.
Application

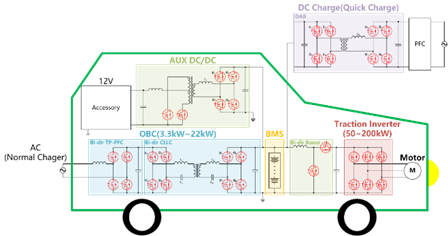

Bidirectional TP-PFC in OBC
Topology
Package
TO-247: 40A
TO-247: 50A
CKW40N120L2
Features
20µs of Short-circuit Withstand Time.
Trench FS Technology offering.
Very low VCE(sat).
Positive temperature coefficient in VCE(sat).
Very tight parameter distribution.
High ruggedness, temperature stable behavior.
Maximum Junction Temperature: TJ=175℃.
Applications
HVAC inverter
PTC Heater
Servo &GPD
Topology
3 phase inverter
Package
TO-247: 40A
CKW50N65F2(Q)
Features
Trench FS Technology offering.
Very low VCE(sat).
Positive temperature coefficient in VCE(sat).
Very tight parameter distribution.
High ruggedness, temperature stable behavior.
Maximum Junction Temperature: TJ=175℃.
Applications
DC charging PFC (30kW)
HVAC PFC (Q)
Solar string MPPT (5kW)
Solar string inverter (10kW)
Modular UPS
Other Inverter Application
Topology
Package
TO-247: 50A
